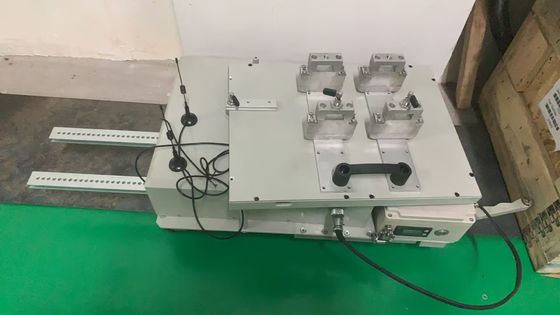

HXPC-200A Pipeline Outer Wall Crawler System for Double-Wall Single-Shadow DR Inspection
1. General introduction
(1) Equipment brand: HUATEC
(2) Model: HXPC-200A
(3) Travel speed: ≥100mm/s;
(4) The walking mode adopts the track type to ensure the vertical orientation of the weld: ±1mm, the walking direction orientation
Accuracy: ±1mm;
(5) It can meet the driving requirements of double-wall single-shadow directional ray machine for pipelines with a diameter of less than 1600mm;
(6) Use 5G dual-band wireless communication system, control distance: 100 meters (open land);
(7) The use of 36V integrated low-temperature lithium battery power supply, easy to replace, can work normally at minus 40℃;
(8) Working hours: more than 8 hours;
(9) Power consumption: ≤150W;
(10) Synchronous drive with the tube wall climbing vehicle (flat scanner) to complete the double-wall single-shadow DR Transillumination detection requirements
2. Portable X ray flaw detector
Equipment name: portable high frequency constant pressure X-ray flaw detection machine
| Model |
XXG 300JYGF |
| X-ray tube |
metal ceramic tube |
| X-ray tube power supply mode |
constant voltage |
| X-ray tube voltage regulation range |
50-300kV |
| Tube voltage regulation step |
1kV/step
|
| X-ray tube current |
0.5-3.0mA |
| Tube current regulation step |
0.1mA/step |
| Maximum exposure time |
99 minutes 59 seconds
|
| Delay high pressure adjustment range |
0-99 seconds
|
| Maximum power of X-ray tube |
900W |
| Operating frequency |
100kHz
|
| Focus size |
AC.EN12543 d=3.0mm (AC.IEC 336 1.5mm)
|
| Penetration thickness |
65mm (A3 steel, focal length 700mm, HUATEC D7 film, negative black ≥2.0, 10Minutes)
|
| Temporary load rate |
100% (at ambient temperature of 20℃, maximum power conditions)
|
| Radiation Angle |
40°x 55° |
| Internal filter |
1mmBe |
| Additional filter |
4mm Alequivalent
|
| Pipe head size |
φ295mmx775mm (including end ring) |
| Tube head weight |
29kg |
| Connection cable |
50M |
| Power cable |
10M |
| Controller size |
465mmx154mmx323mm
|
| Weight of controller |
11.3kg |
| Input power |
200-250VAC, 47-400Hz |
| Anode cooling method |
forced air cooling |
| Allowable ambient temperature |
-20℃~+40℃ |
3. Standard accessories include:
DR panel detector pipe outer wall climbing machine
X ray machine pipe outer wall climbing machine
Digital flat detector 1024,76μm,image area 233 x 97mm

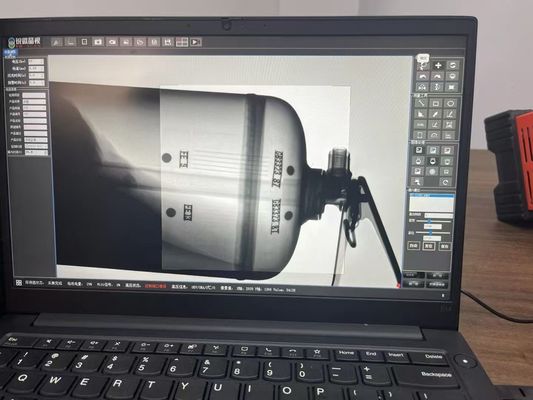

Digital image acquisition and processing software
Laptop computer
High frequency constant pressure X ray flaw detector (directional)
Crawler guide rail(Customized according to customer requirements): Ø813mm, Ø1016mm, Ø1219mm, Ø1422mm 4pcs.
