Ultrasonic Thickness Gauge TG3300 for NDT-UTG Tester for Pressure Vessels

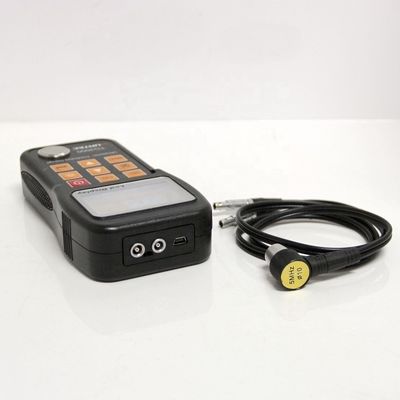

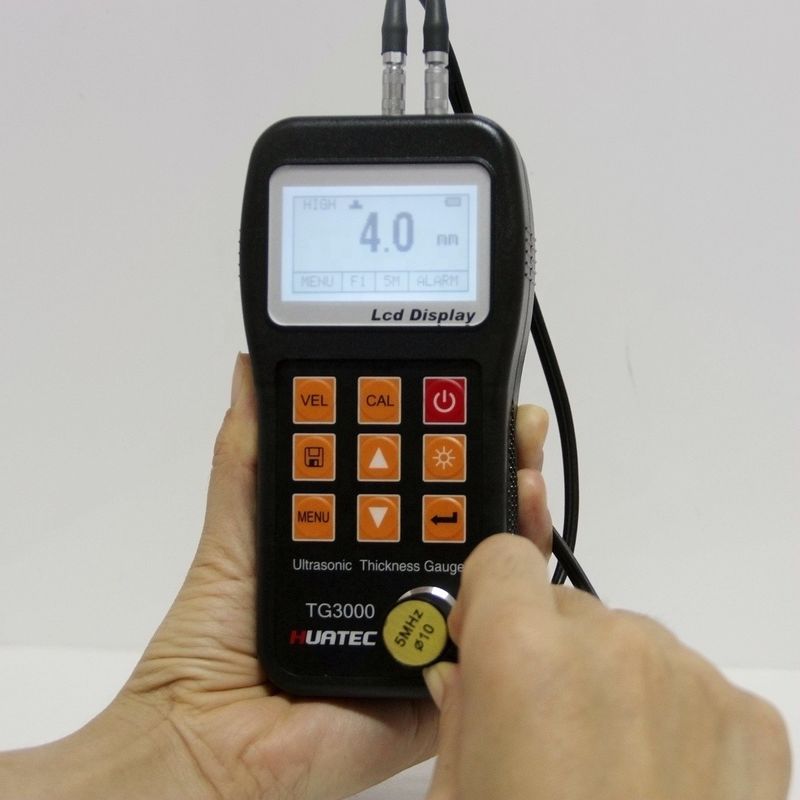

The model TG3300 is a digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

 Product Specifications

1) Display:4.5 digits LCD with EL backlight.

2) Measuring Range:(0.75～300)mm (in Steel).

3) Sound Velocity Range: (1000~9999) m/s.

4) Resolution:TG3000:0.1mm; TG3100:0.1mm/0.01mm

5) Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions

6) Units: Metric/Imperial unit selectable.

7) Four measurements readings per second for single point measurement, and ten per second for Scan Mode.

8) Memory for up to 20 files (up to 99 values for each file) of stored values.

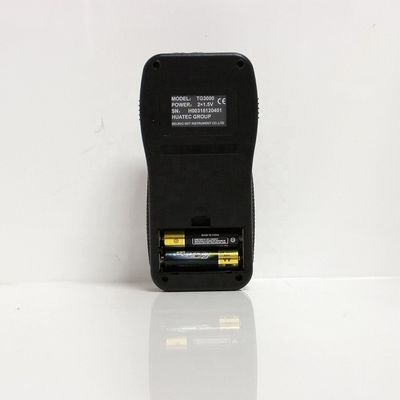

9) Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10) Communication:RS232 serial port for TG3100. No communication port for TG3000.

11) Outline dimensions:150mm×74mm×32 mm.

12) Weight:245g

Configuration

Operating Conditions

Operating Temperature: －20℃～＋60℃;

Storage Temperature:-30℃～＋70℃

Relative Humidity ≤90％；

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
