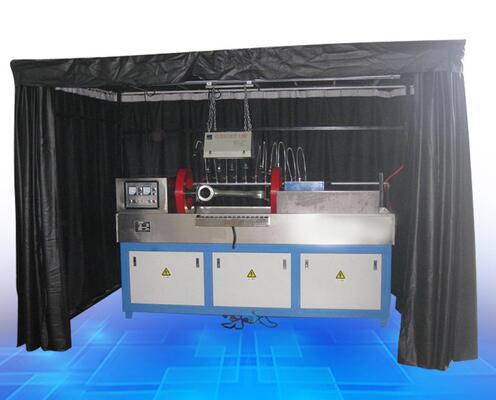

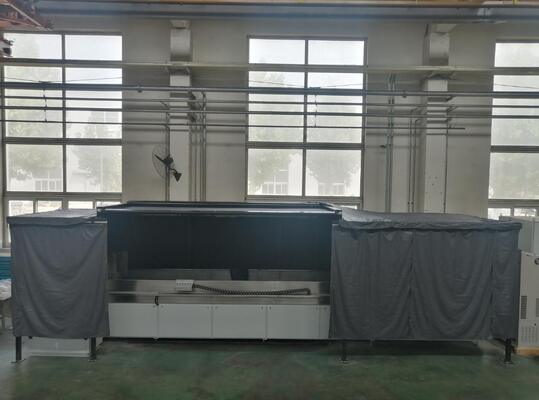

MPI machine wet bench type HMP-10000AC/DC

Fluorescent Magnetic Particle Flaw Detector Technical Parameters

             electric current

name

(AC) 0-10000A (effective value) continuously adjustable, with power off phase control;

(HWDC) 0-10000A (twice the average value)

Circumferential magnetizing current(A)

(AC) 0-24000A(Effective value) Continuously adjustable, with power off phase control；

(HWDC) 0-24000AT(average value)

Longitudinal magnetized magnetic flux potential(AT)

(AC) 0-18000AT (effective value) continuously adjustable, with power off phase control;

(HWDC) 0-18000AT (twice the average value)

Optional coil inside diameter(mm)

400

Optional maximum electrode spacing(mm)

1800

host

Split type (electrical control cabinet is separated from the host)

sensitivity

Type A test piece (30/50, 15/50) shows clearly

Temporary loading rate

≤20%

control mode

Manual/semi-automatic

Operation interface (*)

Button/touch screen

Clamping mode(*)

Electric,Pneumatic

Rotation mode

Electric

AC magnetization method

Circumferential magnetization, longitudinal magnetization,Compound magnetization

AC demagnetization mode

Automatic attenuation demagnetization

Rectification mode

Single-phase half wave

AC and DC magnetization method(*)

Circumferential AC magnetization, circumferential DC magnetization,

Longitudinal AC magnetization,

Circumferential DC longitudinal AC composite magnetization

DC demagnetization mode(*)

Ultra-low frequency demagnetization

Ultraviolet lamp

Hanging type, hand-held type

Spraying time

3"～6" / Manual

Magnetization time

0.5"~2"/times

Rotation observation time

5"～10"/week

AC demagnetization time

3"~5"/times

Air source

0.4-0.8MPa

Power Supply

Three phase five wire,380V±10%,50Hz

Overall dimensions(mm)

Length: 3.8m

Width: 800~1200mm (width of darkroom: 1800mm)
