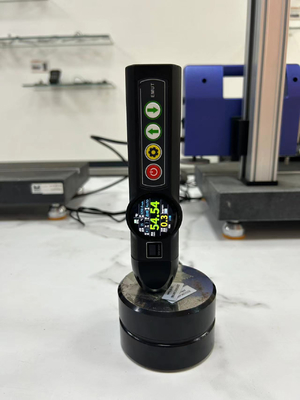

TG-50 OLED Ultrasonic Thickness Gauge for Metal & Coating Measurement

TG-50 OLED Ultrasonic Thickness & Coating Thickness and Vibration Three-in-One Electromagnetic Ultrasonic Thickness Gauge is a pen-type ultra-small, non-contact thickness measurement instrument that does not require acoustic coupling agents. It can achieve thickness measurement of metal or magnetic materials, while also measuring the thickness of the coating layer on the outside of magnetic workpieces. When the instrument is attached to the workpiece, it can measure the vibration of the workpiece.

• Small size, easy to carry
• Low requirements for the surface of the workpiece, no need for polishing treatment on rough surfaces, and non-contact measurement can be achieved
• Insensitive to coatings, enabling thickness measurement of coated workpieces
• No acoustic coupling agent is required, thickness measurement of high-temperature workpieces can be achieved, and temperature compensation can be performed
• 1.3-inch high-definition IPS circular LCD screen display, 360° without blind spots
• 0.42-inch OLED screen, high brightness display acceleration
• Electromagnetic ultrasonic thickness gauge, coating thickness measurement and vibration analysis three in one

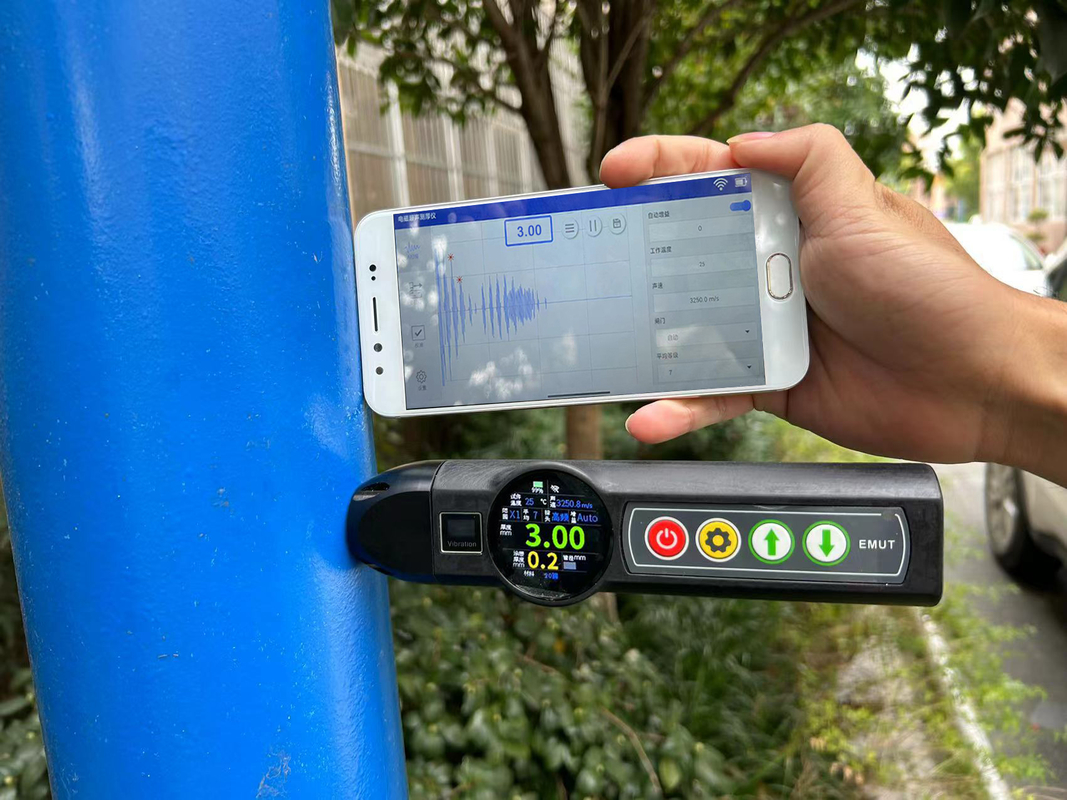

• The instrument consists of a host and a mobile phone, which are wirelessly connected via WiFi
• The instrument adopts the principle of electromagnetic ultrasound, and the inspection process does not require polishing the surface of the workpiece and coupling agent
• The probe and host are integrated, and the probe can be replaced
• After connecting the phone and pad, there are two functions: A-scan and B-scan
• Configurable probe types: probe (≤80℃, short-term measurement), high temperature probe (≤800℃, short-term measurement)
• Configurable high-temperature handle: short handle (meets measurement requirements up to 350°C, short-term measurement), long handle (meets measurement requirements up to 800°C, short-time measurement)
