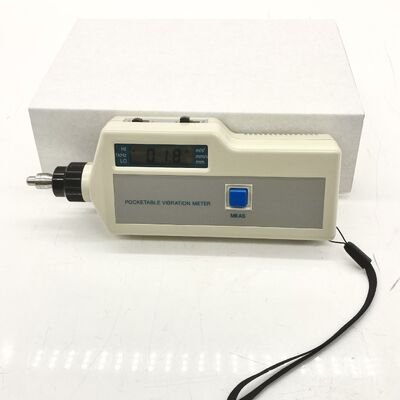

HG-6500ANC Handheld Vibration Analyzer 10Hz ~ 10KHz Acceleration Velocity Displacement Temperature Measurement Bearing Gear Fault Detector

HG-6500ANC Handheld Vibration Analyzer 10Hz ~ 10KHz Acceleration Velocity Displacement Temperature Measurement Bearing Gear Fault Detector

Description:
HG-6500ANC Pocket vibration temperature instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).

Specifications

Sensors: one rotary shear accelerometer & Split charge amplifier built-in shear accelerometer

Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (10 ~ 1KHz; 1K ~ 10KHz)

Speed of 0.1 ~ 199.9mm / s (RMS) (10 ~ 1KHz)

Displacement of 0.001 ~ 1.999mm (peak) (10 ~ 1KHz)

Temperature 0 ℃ ~ 400 ℃

Accuracy: 5% ± 2 vibration words

Temperature 1% ± 1 word

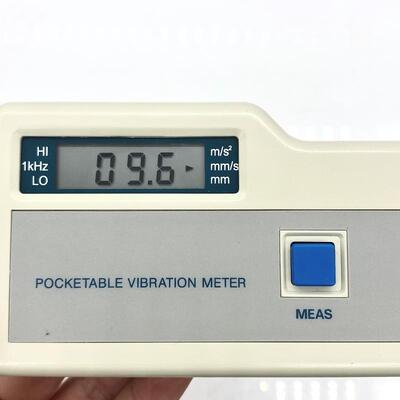

Display: LCD display three and a half

Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay

Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)

Power: 9V laminated battery 1 can be used continuously 25 hours

Body volume: 185mm × 68mm × 30mm

Weight: 200g

Standard Configuration:

Main body 1pc

Short Probe 1(only in-built type)

thermocouple transducer 1(only for –C type)

6F22 battery 1

Manual book 1

Quality card/Guarantee Card 1 each

Optional:

Long probe

earpiece

sheath

cable(for signal output)
